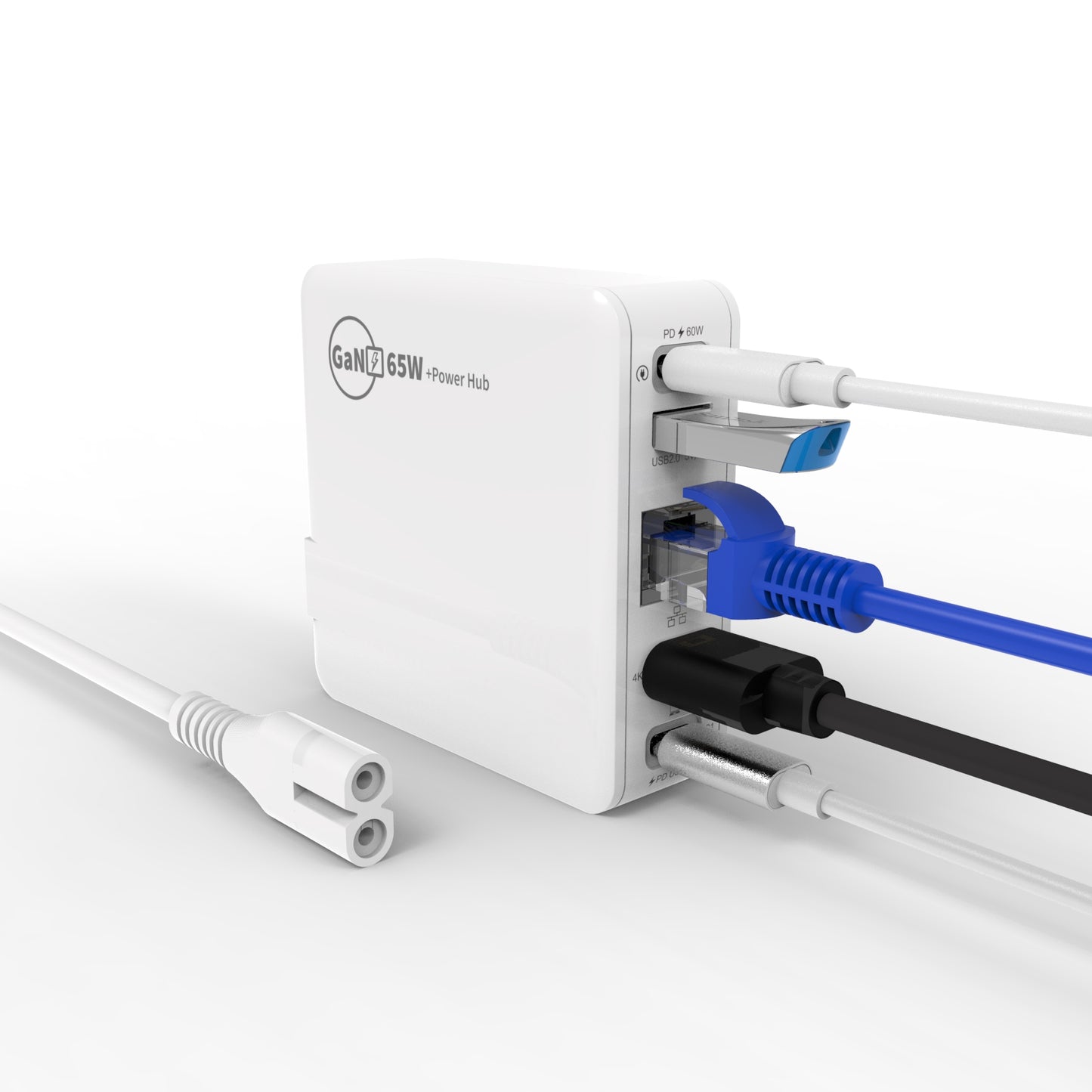

5-in-1 65W GaN USB-C Charger Power Hub Docking Station
5-in-1 65W GaN USB-C Charger Power Hub Docking Station
Couldn't load pickup availability
Wired Network
The RJ45 network port supports 100Mbps which can make your network smoother
Compatible With Many Device
USB-A port: Keyboard, mouse, U disk, Gamepad, projector, USB fan, print, etc.
Input/Output
Input: 100-240V 1.5A, 50/60Hz Max( with 1.8M 8-port power cord)
Output Type-C1: Data transmission + PD charging; Type-C2: PD charging
Zoom In for Better Experience
To get better experience and show for more people, our 65W GaN Charger Power Hub can realize it in some certain specific scenarios - Zoom in the screen, such as teaching, gaming, conferencing, watching movie, etc.
Datesheet
Technical Specifications
Output: USB 2.0: 5V/1A Max
Type C1(PD): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A Max
Type C2(PD/QC): 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A Max
Type C1&C2 output: 45W + 15W Max
RJ45: 100Mbps
HDMI: HD1.4(3840*2160/4K@30Hz) Max
Input: 100-240V 1.5A, 50/60Hz Max
Indicator: Blue
Protective function: Support short circuit, over current, over voltage, under voltage, over temperature protection
Surface Temp.: Ambient temperature 25°C, Temperature rise & LT: 77 °C
Procotol Support: Type C1: PD3.0, QC2.0, BC1.2, Apple
Type C2: PD3.0, QC2.0, BC1.2, Apple QC2.0, QC3.0, Samsung, Huawei, FCP, SCP
Dimensions: 80*80*28.6mm
Weight: 0.365kg
Warranty: 1 year
Product liability: Shenzhen Shinetone Technology Co., Ltd is not responsible for any unexpected accidents caused
by failure to comply with the requirements of this specification.
In the Box: GaN charger Hub, 8-port power cable, User manual
